Keras in practice

import os
os.environ["CUDA_VISIBLE_DEVICES"] = "-1"       # CPU, for reproducibility
os.environ["TF_CPP_MIN_LOG_LEVEL"] = "3"
import numpy as np
import pandas as pd
import tensorflow as tf
from tensorflow import keras

tf.random.set_seed(42)
np.random.seed(42)
tf.config.threading.set_intra_op_parallelism_threads(2)
print(f"TensorFlow {tf.__version__}  |  Keras {keras.__version__}")
print(f"Device: {'GPU' if tf.config.list_physical_devices('GPU') else 'CPU'}")

from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
from sklearn.impute import SimpleImputer

df = pd.read_csv(DATA / "uy_ijara.csv")
num = ["xonalar", "maydon_m2", "qavat", "qavatlar_soni", "metro_km", "mebel", "qurilgan_yil"]
X = SimpleImputer(strategy="median").fit_transform(df[num])
y = df["ijaraga_berildi_30k"].to_numpy(dtype="float32")

X_tr, X_te, y_tr, y_te = train_test_split(X, y, test_size=0.3, random_state=42, stratify=y)
sc = StandardScaler().fit(X_tr)
X_tr, X_te = sc.transform(X_tr).astype("float32"), sc.transform(X_te).astype("float32")

model = keras.Sequential([
    keras.layers.Input(shape=(X_tr.shape[1],)),
    keras.layers.Dense(16, activation="relu"),
    keras.layers.Dense(1, activation="sigmoid"),
])
model.compile(optimizer="adam", loss="binary_crossentropy", metrics=["accuracy"])
history = model.fit(X_tr, y_tr, epochs=40, batch_size=32, verbose=0,
                    validation_split=0.2)
loss, acc = model.evaluate(X_te, y_te, verbose=0)
print(f"Test loss: {loss:.4f}   Test accuracy: {acc:.4f}")

model.summary(print_fn=lambda s: print("  " + s))

n_in = X_tr.shape[1]
print(f"Layer 1: Dense(16)")
print(f"  W shape: ({n_in}, 16) -> {n_in * 16} parameters")
print(f"  b shape: (16,)            -> 16 parameters")
print(f"  total: {n_in * 16 + 16}")
print()
print(f"Layer 2: Dense(1)")
print(f"  W: (16, 1) -> 16  |  b: (1,) -> 1  |  total: 17")
print()
print(f"Overall: {n_in * 16 + 16 + 17}")
print(f"model.count_params(): {model.count_params()}")

show(pd.DataFrame([
    {"Step": "1. Build", "What you do": "The layers and their shapes",
     "In code": "keras.Sequential([...])"},
    {"Step": "2. Compile", "What you do": "The optimizer, the loss, the metrics",
     "In code": "model.compile(...)"},
    {"Step": "3. Fit", "What you do": "The data, the epochs, the batch",
     "In code": "model.fit(...)"},
]))

show(pd.DataFrame([
    {"Task": "Binary classification", "Output layer": "Dense(1, activation='sigmoid')",
     "loss": "binary_crossentropy", "metrics": "accuracy, AUC"},
    {"Task": "Multiclass (3+ classes)", "Output layer": "Dense(n_classes, activation='softmax')",
     "loss": "sparse_categorical_crossentropy", "metrics": "accuracy"},
    {"Task": "Multilabel (several labels)", "Output layer": "Dense(n, activation='sigmoid')",
     "loss": "binary_crossentropy", "metrics": "accuracy"},
    {"Task": "Regression", "Output layer": "Dense(1): NO activation",
     "loss": "mse or mae", "metrics": "mae, RootMeanSquaredError"},
]))

print("A regression problem, three variants:")
yn = df["narx_usd"].to_numpy(dtype="float32")
Xn_tr, Xn_te, yn_tr, yn_te = train_test_split(X, yn, test_size=0.3, random_state=42)
scn = StandardScaler().fit(Xn_tr)
Xn_tr, Xn_te = scn.transform(Xn_tr).astype("float32"), scn.transform(Xn_te).astype("float32")

print(f"  (the average rent is {yn.mean():.0f} USD: the MAE MUST be far below that)")
print()
print(f"{'variant':<34} {'epochs':>6} {'test MAE':>10}")
print("-" * 54)
for name, last, ep in [
    ("Dense(1): right, few epochs", keras.layers.Dense(1), 30),
    ("Dense(1): right, enough epochs", keras.layers.Dense(1), 400),
    ("Dense(1, 'sigmoid'): WRONG", keras.layers.Dense(1, activation="sigmoid"), 400),
]:
    tf.random.set_seed(42)
    m = keras.Sequential([keras.layers.Input(shape=(Xn_tr.shape[1],)),
                          keras.layers.Dense(32, activation="relu"), last])
    m.compile(optimizer="adam", loss="mse", metrics=["mae"])
    m.fit(Xn_tr, yn_tr, epochs=ep, batch_size=32, verbose=0)
    _, mae = m.evaluate(Xn_te, yn_te, verbose=0)
    print(f"{name:<34} {ep:>6} {mae:>10.1f}")

tf.random.set_seed(42)
model2 = keras.Sequential([
    keras.layers.Input(shape=(X_tr.shape[1],)),
    keras.layers.Dense(64, activation="relu"),
    keras.layers.Dropout(0.3),
    keras.layers.Dense(32, activation="relu"),
    keras.layers.Dense(1, activation="sigmoid"),
])
model2.compile(optimizer=keras.optimizers.Adam(1e-3),
               loss="binary_crossentropy", metrics=["accuracy"])

callbacks = [
    keras.callbacks.EarlyStopping(monitor="val_loss", patience=15, restore_best_weights=True),
    keras.callbacks.ReduceLROnPlateau(monitor="val_loss", factor=0.3, patience=7, min_lr=1e-5),
]
t2 = model2.fit(X_tr, y_tr, epochs=300, batch_size=32, verbose=0,
                validation_split=0.2, callbacks=callbacks)
print(f"Epochs allowed           : 300")
print(f"Early stopping stopped at: {len(t2.history['loss'])} epochs")
print(f"Best val_loss            : {min(t2.history['val_loss']):.4f}")
loss2, acc2 = model2.evaluate(X_te, y_te, verbose=0)
print(f"Test accuracy            : {acc2:.4f}")

show(pd.DataFrame([
    {"Callback": "EarlyStopping", "What it does": "Stops when val_loss stops improving",
     "Key parameter": "patience, restore_best_weights=True"},
    {"Callback": "ReduceLROnPlateau", "What it does": "Lowers the learning rate on a plateau",
     "Key parameter": "factor, patience"},
    {"Callback": "ModelCheckpoint", "What it does": "Saves the best model to disk",
     "Key parameter": "save_best_only=True"},
    {"Callback": "TensorBoard", "What it does": "Writes charts to a log",
     "Key parameter": "log_dir"},
]))

import matplotlib.pyplot as plt

figure, axes = plt.subplots(1, 2, figsize=(13.5, 4.6))
axes[0].plot(t2.history["loss"], lw=2, label="train", color="#1a73e8")
axes[0].plot(t2.history["val_loss"], lw=2, label="validation", color="#c5221f")
axes[0].set_xlabel("Epoch"); axes[0].set_ylabel("Loss")
axes[0].set_title("Loss", fontweight="bold"); axes[0].legend(); axes[0].grid(alpha=.3)

axes[1].plot(t2.history["accuracy"], lw=2, label="train", color="#1a73e8")
axes[1].plot(t2.history["val_accuracy"], lw=2, label="validation", color="#c5221f")
axes[1].set_xlabel("Epoch"); axes[1].set_ylabel("Accuracy")
axes[1].set_title("Accuracy", fontweight="bold"); axes[1].legend(); axes[1].grid(alpha=.3)

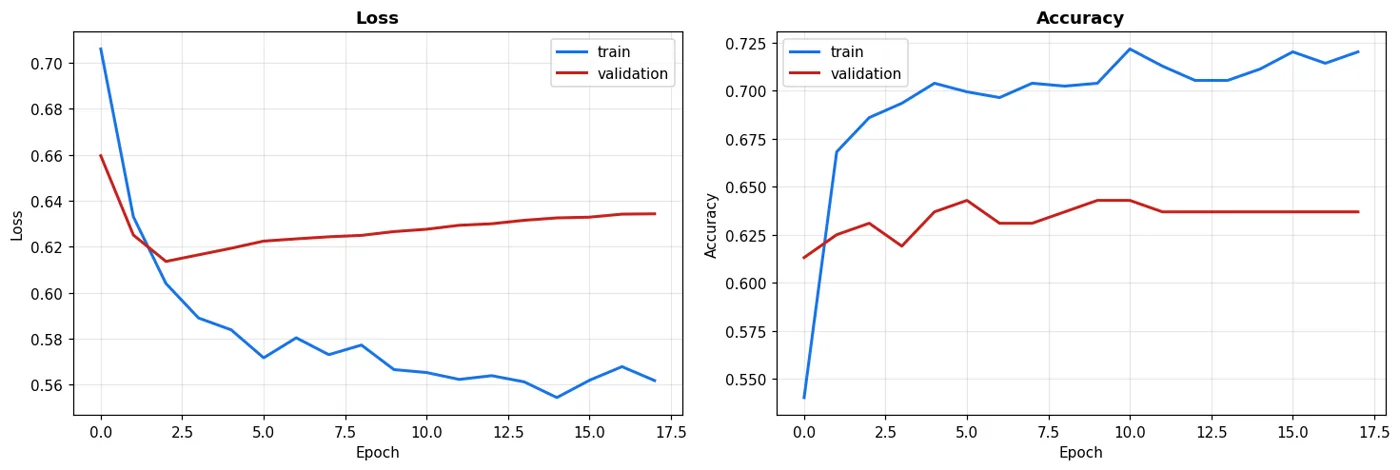

fig("keras_tarix.png", caption="If the two lines pull apart, it's overfitting. If they run side by side, it's good.")

last_gap = t2.history["val_loss"][-1] - t2.history["loss"][-1]
print(f"At the last epoch val_loss - loss = {last_gap:+.4f}")
print("Diagnosis:", "a sign of overfitting" if last_gap > 0.1 else "the lines are close: good")

tf.random.set_seed(42)
inp = keras.layers.Input(shape=(X_tr.shape[1],), name="features")
h = keras.layers.Dense(32, activation="relu")(inp)
h = keras.layers.Dense(16, activation="relu")(h)
out_class = keras.layers.Dense(1, activation="sigmoid", name="goes_fast")(h)
out_price = keras.layers.Dense(1, name="price")(h)

two_outputs = keras.Model(inp, [out_class, out_price])
two_outputs.compile(
    optimizer="adam",
    loss={"goes_fast": "binary_crossentropy", "price": "mse"},
    loss_weights={"goes_fast": 1.0, "price": 0.0001},
    metrics={"goes_fast": "accuracy", "price": "mae"},
)
yn_tr2 = df["narx_usd"].to_numpy(dtype="float32")[
    train_test_split(np.arange(len(df)), test_size=0.3, random_state=42, stratify=y)[0]]
t3 = two_outputs.fit(X_tr, {"goes_fast": y_tr, "price": yn_tr2},
                     epochs=40, batch_size=32, verbose=0, validation_split=0.2)
result = two_outputs.evaluate(X_te, {"goes_fast": y_te,
                                     "price": df["narx_usd"].to_numpy(dtype="float32")[
                                         train_test_split(np.arange(len(df)), test_size=0.3,
                                                          random_state=42, stratify=y)[1]]},
                              verbose=0, return_dict=True)
print("One network, TWO tasks:")
for k, v in result.items():
    print(f"  {k:28s} {v:.4f}")

import time
batch = 64
ds_tr = (tf.data.Dataset.from_tensor_slices((X_tr, y_tr))
         .shuffle(1000, seed=42).batch(batch).prefetch(tf.data.AUTOTUNE))
ds_te = tf.data.Dataset.from_tensor_slices((X_te, y_te)).batch(batch)

tf.random.set_seed(42)
m4 = keras.Sequential([keras.layers.Input(shape=(X_tr.shape[1],)),
                       keras.layers.Dense(32, activation="relu"),
                       keras.layers.Dense(1, activation="sigmoid")])
m4.compile(optimizer="adam", loss="binary_crossentropy", metrics=["accuracy"])
t0 = time.perf_counter(); m4.fit(ds_tr, epochs=30, verbose=0); dt_ds = time.perf_counter()-t0
print(f"With tf.data      : {dt_ds:.1f}s, test accuracy {m4.evaluate(ds_te, verbose=0)[1]:.4f}")

tf.random.set_seed(42)
m5 = keras.Sequential([keras.layers.Input(shape=(X_tr.shape[1],)),
                       keras.layers.Dense(32, activation="relu"),
                       keras.layers.Dense(1, activation="sigmoid")])
m5.compile(optimizer="adam", loss="binary_crossentropy", metrics=["accuracy"])
t0 = time.perf_counter(); m5.fit(X_tr, y_tr, batch_size=batch, epochs=30, verbose=0); dt_np = time.perf_counter()-t0
print(f"With a numpy array: {dt_np:.1f}s, test accuracy {m5.evaluate(X_te, y_te, verbose=0)[1]:.4f}")
print()
print("On small data there's no difference. You need tf.data on big data:")
print("  - when it doesn't all fit in memory (streaming from disk)")
print("  - when you need image augmentation")
print("  - so the GPU isn't left waiting, thanks to prefetch")

path = ISH / "model.keras"
model2.save(path)
print(f"Saved: {path.name}  ({path.stat().st_size / 1024:.0f} KB)")

loaded = keras.models.load_model(path)
a1 = model2.predict(X_te[:5], verbose=0).ravel()
a2 = loaded.predict(X_te[:5], verbose=0).ravel()
print(f"Original model's predictions: {a1.round(5)}")
print(f"The loaded model            : {a2.round(5)}")
print(f"Exactly the same            : {bool(np.allclose(a1, a2))}")

import joblib
sc_path = ISH / "scaler.joblib"
joblib.dump(sc, sc_path)
print(f"Scaler saved separately: {sc_path.name} ({sc_path.stat().st_size} bytes)")
print()
# or we put the normalisation INSIDE the network
tf.random.set_seed(42)
norm = keras.layers.Normalization()
X_raw_tr = SimpleImputer(strategy="median").fit_transform(df[num])[
    train_test_split(np.arange(len(df)), test_size=0.3, random_state=42, stratify=y)[0]]
norm.adapt(X_raw_tr.astype("float32"))
inner = keras.Sequential([keras.layers.Input(shape=(len(num),)), norm,
                          keras.layers.Dense(32, activation="relu"),
                          keras.layers.Dense(1, activation="sigmoid")])
inner.compile(optimizer="adam", loss="binary_crossentropy", metrics=["accuracy"])
inner.fit(X_raw_tr.astype("float32"), y_tr, epochs=40, batch_size=32, verbose=0)
X_raw_te = SimpleImputer(strategy="median").fit_transform(df[num])[
    train_test_split(np.arange(len(df)), test_size=0.3, random_state=42, stratify=y)[1]]
print("Normalisation INSIDE the network: it's given RAW data:")
print(f"  test accuracy: {inner.evaluate(X_raw_te.astype('float32'), y_te, verbose=0)[1]:.4f}")
print("  Save this model and the scaling is saved along with it.")

from sklearn.ensemble import RandomForestClassifier
from sklearn.linear_model import LogisticRegression
from sklearn.model_selection import cross_val_score

print(f"{'model':<34} {'test accuracy':>14}")
print("-" * 50)
print(f"{'Keras MLP (64-32, dropout)':<34} {acc2:>14.4f}")
for name, m in [("LogisticRegression", LogisticRegression(max_iter=3000)),
                ("RandomForest", RandomForestClassifier(n_estimators=200, random_state=42))]:
    m.fit(X_tr, y_tr)
    print(f"{name:<34} {m.score(X_te, y_te):>14.4f}")

show(pd.DataFrame([
    {"Concept": "Three steps", "In one sentence": "Sequential -> compile -> fit"},
    {"Concept": "Output and loss pairing", "In one sentence": "sigmoid+BCE, softmax+CCE, regression: no activation+MSE"},
    {"Concept": "EarlyStopping", "In one sentence": "DON'T FORGET restore_best_weights=True"},
    {"Concept": "The training curve", "In one sentence": "Train and val side by side: the main diagnostic"},
    {"Concept": "Functional API", "In one sentence": "Several inputs/outputs or a branching network"},
    {"Concept": "tf.data", "In one sentence": "For big data, augmentation, prefetch"},
    {"Concept": "The saving trap", "In one sentence": "model.save() doesn't save the scaler"},
]))
