Backpropagation and optimizers

dz1 = da1 * (z1 > 0)        # the ReLU derivative
dW1 = X.T @ dz1

import numpy as np
import pandas as pd

# the simplest chain: x -> z1 = w1*x -> a1 = z1^2 -> z2 = w2*a1 -> L = (z2 - y)^2
x, y_true, w1, w2 = 2.0, 10.0, 3.0, 0.5

# FORWARD
z1 = w1 * x
a1 = z1 ** 2
z2 = w2 * a1
L = (z2 - y_true) ** 2
print(f"FORWARD: x={x} -> z1={z1} -> a1={a1} -> z2={z2} -> L={L}")
print()

# BACKWARD, by the chain rule
dL_dz2 = 2 * (z2 - y_true)
dz2_dw2 = a1
dz2_da1 = w2
da1_dz1 = 2 * z1
dz1_dw1 = x

dL_dw2 = dL_dz2 * dz2_dw2
dL_dw1 = dL_dz2 * dz2_da1 * da1_dz1 * dz1_dw1

print("BACKWARD (the chain rule):")
print(f"  dL/dz2 = 2*(z2-y)        = {dL_dz2}")
print(f"  dL/dw2 = dL/dz2 * a1     = {dL_dw2}")
print(f"  dL/dw1 = dL/dz2 * w2 * 2*z1 * x = {dL_dw1}")

def loss(w1_, w2_):
    return (w2_ * (w1_ * x) ** 2 - y_true) ** 2

h = 1e-6
numeric_w1 = (loss(w1 + h, w2) - loss(w1 - h, w2)) / (2 * h)
numeric_w2 = (loss(w1, w2 + h) - loss(w1, w2 - h)) / (2 * h)

print(f"{'parameter':>10} {'analytic':>14} {'numeric':>14} {'difference':>12}")
print("-" * 54)
print(f"{'w1':>10} {dL_dw1:>14.6f} {numeric_w1:>14.6f} {abs(dL_dw1-numeric_w1):>12.2e}")
print(f"{'w2':>10} {dL_dw2:>14.6f} {numeric_w2:>14.6f} {abs(dL_dw2-numeric_w2):>12.2e}")

def sigmoid(z):
    return 1 / (1 + np.exp(-np.clip(z, -500, 500)))

print("In the chain rule the derivatives are MULTIPLIED.")
print("The sigmoid derivative's maximum is 0.25 (at z=0):")
print()
print(f"{'layers':>10} {'sigmoid (0.25^n)':>20} {'ReLU (1^n)':>14}")
print("-" * 48)
for n in [1, 3, 5, 10, 20]:
    print(f"{n:>10} {0.25**n:>20.2e} {1.0**n:>14.1f}")

import matplotlib.pyplot as plt

# measure it in practice: the gradient's size in a deep network
def measure_gradient(n_layers, activation="sigmoid", seed=42):
    r = np.random.default_rng(seed)
    X = r.normal(size=(200, 20))
    W = [r.normal(0, 1 / np.sqrt(20), (20, 20)) for _ in range(n_layers)]
    a = X
    states = [a]
    for Wi in W:
        z = a @ Wi
        a = sigmoid(z) if activation == "sigmoid" else np.maximum(0, z)
        states.append(a)
    # backward: track the gradient's size starting from the last layer
    g = np.ones_like(a)
    sizes = []
    for i in range(n_layers - 1, -1, -1):
        if activation == "sigmoid":
            g = g * states[i + 1] * (1 - states[i + 1])
        else:
            g = g * (states[i + 1] > 0)
        g = g @ W[i].T
        sizes.append(float(np.abs(g).mean()))
    return sizes[::-1]

sig_g = measure_gradient(12, "sigmoid")
relu_g = measure_gradient(12, "relu")

figure, ax = plt.subplots(figsize=(9.5, 4.6))
ax.semilogy(range(1, 13), sig_g, "o-", lw=2, label="sigmoid", color="#c5221f")
ax.semilogy(range(1, 13), relu_g, "o-", lw=2, label="ReLU", color="#137333")
ax.set_xlabel("Layer (1 = closest to the input)")
ax.set_ylabel("Mean gradient size (log scale)")
ax.set_title("The vanishing gradient, in a 12-layer network", fontweight="bold")
ax.legend(); ax.grid(alpha=.3, which="both")

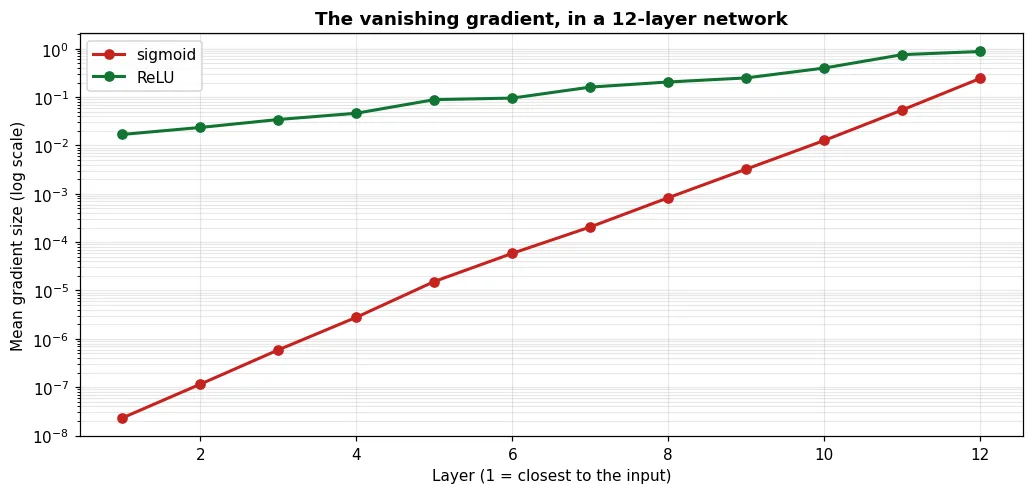

fig("gradient_yoqolishi.png", caption="With sigmoid the gradient doesn't reach the first layers. With ReLU it survives.")

print(f"{'layer':>8} {'sigmoid gradient':>20} {'ReLU gradient':>16}")
print("-" * 48)
for i in [0, 3, 7, 11]:
    print(f"{i+1:>8} {sig_g[i]:>20.3e} {relu_g[i]:>16.3e}")
print()
print(f"At layer 1 the ratio: ReLU / sigmoid = {relu_g[0]/sig_g[0]:.0f} times")

print("If every weight is ZERO:")
W_zero = np.zeros((4, 3))
X_t = np.random.default_rng(0).normal(size=(5, 4))
print(f"  output: {np.unique(np.round(X_t @ W_zero, 6))}  -> every neuron is THE SAME")
print("  Every neuron gets the same gradient and changes the same way.")
print("  So a 100-neuron layer equals 1 neuron: the SYMMETRY never breaks.")
print()
print("If the weights are very LARGE:")
r = np.random.default_rng(42)
for std in [0.01, 1.0, 10.0]:
    a = r.normal(size=(500, 50))
    for _ in range(5):
        a = np.tanh(a @ r.normal(0, std, (50, 50)))
    print(f"  std={std:<6} after 5 layers, output |mean| = {np.abs(a).mean():.6f}")

show(pd.DataFrame([
    {"Method": "Xavier / Glorot", "Formula": "std = sqrt(2 / (n_in + n_out))",
     "When": "tanh, sigmoid", "In Keras": "glorot_uniform (THE DEFAULT)"},
    {"Method": "He / Kaiming", "Formula": "std = sqrt(2 / n_in)",
     "When": "ReLU and its variants", "In Keras": "he_normal"},
    {"Method": "Zero", "Formula": "0", "When": "ONLY for the bias", "In Keras": "zeros"},
]))

print("He and Xavier in practice: how well the signal survives in a 10-layer ReLU network:")
print(f"{'initialization':<22} {'|output| after 10 layers':>30}")
print("-" * 54)
n = 100
for name, std in [("very small (0.01)", 0.01), ("Xavier (sqrt(1/n))", np.sqrt(1/n)),
                  ("He (sqrt(2/n))", np.sqrt(2/n)), ("very large (0.5)", 0.5)]:
    a = r.normal(size=(300, n))
    for _ in range(10):
        a = np.maximum(0, a @ r.normal(0, std, (n, n)))
    print(f"{name:<22} {np.abs(a).mean():>30.6f}")

show(pd.DataFrame([
    {"Optimizer": "SGD", "Idea": "Plain gradient descent",
     "Strength": "Simple, little memory", "Weakness": "Slow, the learning rate is delicate"},
    {"Optimizer": "SGD + Momentum", "Idea": "Keeps the previous direction as a 'velocity'",
     "Strength": "Reduces oscillation", "Weakness": "One more parameter"},
    {"Optimizer": "RMSProp", "Idea": "Each parameter gets its own learning rate",
     "Strength": "Adapts to different scales", "Weakness": "No momentum"},
    {"Optimizer": "Adam", "Idea": "Momentum + RMSProp together",
     "Strength": "THE DEFAULT CHOICE: works in most cases", "Weakness": "More memory"},
    {"Optimizer": "AdamW", "Idea": "Adam + correct weight decay",
     "Strength": "The standard for Transformers", "Weakness": "-"},
]))

def optimize(grad_f, start, alpha=0.1, steps=60, method="sgd", beta=0.9):
    w = np.array(start, dtype=float)
    v = np.zeros_like(w)
    s = np.zeros_like(w)
    path = [w.copy()]
    for k in range(1, steps + 1):
        g = grad_f(w)
        if method == "sgd":
            w = w - alpha * g
        elif method == "momentum":
            v = beta * v + (1 - beta) * g
            w = w - alpha * v / (1 - beta ** k)
        elif method == "adam":
            v = 0.9 * v + 0.1 * g
            s = 0.999 * s + 0.001 * g ** 2
            v_t = v / (1 - 0.9 ** k)
            s_t = s / (1 - 0.999 ** k)
            w = w - alpha * v_t / (np.sqrt(s_t) + 1e-8)
        path.append(w.copy())
    return np.array(path)

# a "stretched bowl": steep along one axis, flat along the other
def grad_stretched(w):
    return np.array([20 * w[0], 1 * w[1]])

paths = {u: optimize(grad_stretched, [-4.0, -4.0], alpha=0.08, method=u)
         for u in ["sgd", "momentum", "adam"]}

figure, ax = plt.subplots(figsize=(9.5, 5))
xx, yy = np.meshgrid(np.linspace(-5, 2, 200), np.linspace(-5, 2, 200))
ax.contour(xx, yy, 10 * xx**2 + 0.5 * yy**2, levels=22, alpha=.3, colors="gray")
for (name, path), colour in zip(paths.items(), ["#c5221f", "#f9ab00", "#137333"]):
    ax.plot(path[:, 0], path[:, 1], "o-", ms=3, lw=1.5, label=name, color=colour, alpha=.85)
ax.plot(0, 0, "k*", ms=16, label="target")
ax.legend(); ax.set_title("Three optimizers in a stretched bowl", fontweight="bold")
ax.grid(alpha=.3)

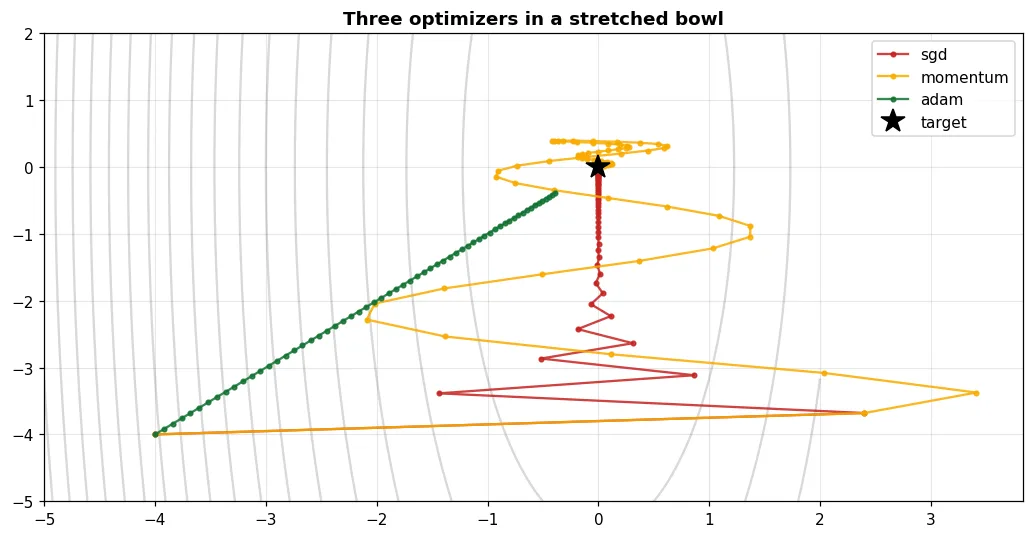

fig("optimizerlar.png", caption="SGD zigzags. Momentum is smoother. Adam adapts its step to each axis.")

print(f"{'optimizer':<12} {'distance after 60 steps':>26}")
print("-" * 40)
for name, path in paths.items():
    print(f"{name:<12} {np.linalg.norm(path[-1]):>26.6f}")

import os
os.environ.setdefault("CUDA_VISIBLE_DEVICES", "-1")   # CPU, for reproducibility
import torch
import torch.nn as nn
torch.manual_seed(42)
torch.set_num_threads(2)

from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
from sklearn.impute import SimpleImputer

df = pd.read_csv(DATA / "uy_ijara.csv")
num = ["xonalar", "maydon_m2", "qavat", "qavatlar_soni", "metro_km", "mebel", "qurilgan_yil"]
Xd = SimpleImputer(strategy="median").fit_transform(df[num])
yd = df["ijaraga_berildi_30k"].to_numpy(dtype=np.float32)
X_tr, X_te, y_tr, y_te = train_test_split(Xd, yd, test_size=0.3, random_state=42, stratify=yd)
sc = StandardScaler().fit(X_tr)
Xt = torch.tensor(sc.transform(X_tr), dtype=torch.float32)
Yt = torch.tensor(y_tr).unsqueeze(1)
Xv = torch.tensor(sc.transform(X_te), dtype=torch.float32)
Yv = torch.tensor(y_te).unsqueeze(1)

def train(opt_name, epochs=120, lr=0.01):
    torch.manual_seed(42)
    model = nn.Sequential(nn.Linear(Xt.shape[1], 16), nn.ReLU(), nn.Linear(16, 1))
    criterion = nn.BCEWithLogitsLoss()
    opt = {"SGD": torch.optim.SGD(model.parameters(), lr=lr),
           "SGD+Momentum": torch.optim.SGD(model.parameters(), lr=lr, momentum=0.9),
           "RMSProp": torch.optim.RMSprop(model.parameters(), lr=lr),
           "Adam": torch.optim.Adam(model.parameters(), lr=lr)}[opt_name]
    history = []
    for _ in range(epochs):
        opt.zero_grad()
        loss = criterion(model(Xt), Yt)
        loss.backward()
        opt.step()
        history.append(float(loss))
    with torch.no_grad():
        val = float(criterion(model(Xv), Yv))
        acc = float(((torch.sigmoid(model(Xv)) > .5).float() == Yv).float().mean())
    return history, val, acc

print(f"{'optimizer':<16} {'train loss':>17} {'val loss':>15} {'val accuracy':>13}")
print("-" * 66)
histories = {}
for name in ["SGD", "SGD+Momentum", "RMSProp", "Adam"]:
    tr, val, acc = train(name)
    histories[name] = tr
    print(f"{name:<16} {tr[-1]:>17.4f} {val:>15.4f} {acc:>13.4f}")

figure, ax = plt.subplots(figsize=(9.5, 4.6))
for (name, tr), colour in zip(histories.items(), ["#c5221f", "#f9ab00", "#1a73e8", "#137333"]):
    ax.plot(tr, lw=2, label=name, color=colour)
ax.set_xlabel("Epoch"); ax.set_ylabel("Train loss")
ax.set_title("The same network, four optimizers", fontweight="bold")
ax.legend(); ax.grid(alpha=.3)

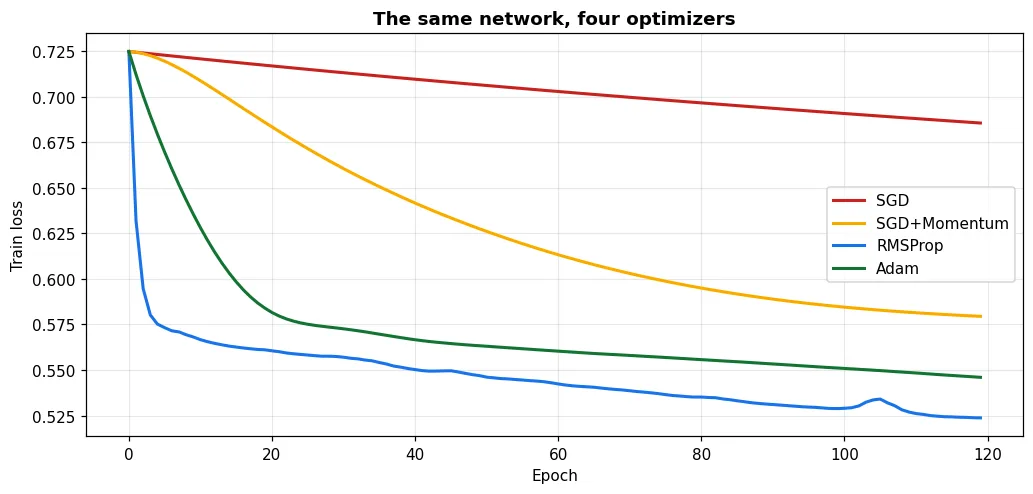

fig("optimizer_tarix.png", caption="Adam and RMSProp drop faster. Plain SGD is slower, but in the end they all converge.")

epochs = 100
schedules = {
    "constant": np.full(epochs, 0.01),
    "step (/10 every 30)": 0.01 * (0.1 ** (np.arange(epochs) // 30)),
    "exponential": 0.01 * 0.97 ** np.arange(epochs),
    "cosine": 0.01 * (1 + np.cos(np.pi * np.arange(epochs) / epochs)) / 2,
}
figure, ax = plt.subplots(figsize=(9.5, 4.2))
for name, j in schedules.items():
    ax.plot(j, lw=2, label=name)
ax.set_xlabel("Epoch"); ax.set_ylabel("Learning rate")
ax.set_title("Learning-rate schedules", fontweight="bold")
ax.legend(); ax.grid(alpha=.3)

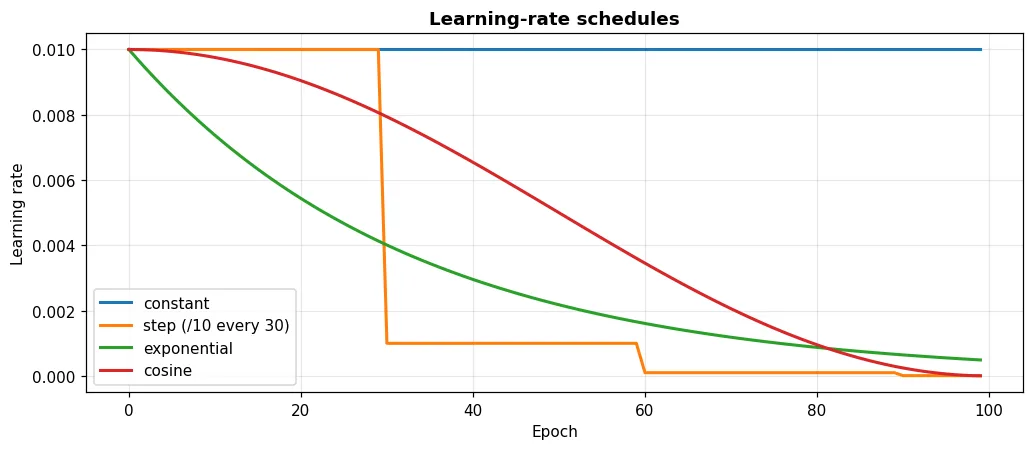

fig("lr_jadval.png", caption="Big steps at the start (fast learning), small steps at the end (fine tuning).")
print("The idea: move fast at the start, adjust carefully at the end.")

def train_schedule(sched_name, epochs=150):
    torch.manual_seed(42)
    model = nn.Sequential(nn.Linear(Xt.shape[1], 16), nn.ReLU(), nn.Linear(16, 1))
    opt = torch.optim.SGD(model.parameters(), lr=0.05, momentum=0.9)
    sched = {"none": None,
             "StepLR": torch.optim.lr_scheduler.StepLR(opt, step_size=50, gamma=0.1),
             "CosineAnnealing": torch.optim.lr_scheduler.CosineAnnealingLR(opt, T_max=epochs)}[sched_name]
    criterion = nn.BCEWithLogitsLoss()
    for _ in range(epochs):
        opt.zero_grad(); loss = criterion(model(Xt), Yt); loss.backward(); opt.step()
        if sched: sched.step()
    with torch.no_grad():
        return float(criterion(model(Xv), Yv)), float(((torch.sigmoid(model(Xv)) > .5).float() == Yv).float().mean())

print(f"{'schedule':<20} {'val loss':>15} {'val accuracy':>13}")
print("-" * 52)
for name in ["none", "StepLR", "CosineAnnealing"]:
    v, a = train_schedule(name)
    print(f"{name:<20} {v:>15.4f} {a:>13.4f}")

show(pd.DataFrame([
    {"Method": "BatchNorm", "What it does": "Normalises each layer's output",
     "Benefit": "Faster training, allows a larger lr", "Where": "AFTER Linear/Conv"},
    {"Method": "Dropout", "What it does": "Randomly switches off part of the neurons during training",
     "Benefit": "Reduces overfitting", "Where": "After the hidden layers"},
]))

def train_arch(name, epochs=200):
    torch.manual_seed(42)
    n = Xt.shape[1]
    model = {
        "plain": nn.Sequential(nn.Linear(n, 64), nn.ReLU(), nn.Linear(64, 32), nn.ReLU(), nn.Linear(32, 1)),
        "+ BatchNorm": nn.Sequential(nn.Linear(n, 64), nn.BatchNorm1d(64), nn.ReLU(),
                                     nn.Linear(64, 32), nn.BatchNorm1d(32), nn.ReLU(), nn.Linear(32, 1)),
        "+ Dropout(0.3)": nn.Sequential(nn.Linear(n, 64), nn.ReLU(), nn.Dropout(0.3),
                                        nn.Linear(64, 32), nn.ReLU(), nn.Dropout(0.3), nn.Linear(32, 1)),
    }[name]
    opt = torch.optim.Adam(model.parameters(), lr=0.01)
    criterion = nn.BCEWithLogitsLoss()
    for _ in range(epochs):
        model.train()
        opt.zero_grad(); loss = criterion(model(Xt), Yt); loss.backward(); opt.step()
    model.eval()
    with torch.no_grad():
        tr_l = float(criterion(model(Xt), Yt))
        va_l = float(criterion(model(Xv), Yv))
        acc = float(((torch.sigmoid(model(Xv)) > .5).float() == Yv).float().mean())
    return tr_l, va_l, acc

print(f"{'architecture':<18} {'train loss':>12} {'val loss':>11} {'gap':>8} {'val accuracy':>13}")
print("-" * 68)
for name in ["plain", "+ BatchNorm", "+ Dropout(0.3)"]:
    tr_l, va_l, acc = train_arch(name)
    print(f"{name:<18} {tr_l:>12.4f} {va_l:>11.4f} {va_l-tr_l:>8.4f} {acc:>13.4f}")

torch.manual_seed(0)
m_drop = nn.Sequential(nn.Linear(Xt.shape[1], 16), nn.ReLU(), nn.Dropout(0.5), nn.Linear(16, 1))
m_drop.train()
with torch.no_grad():
    three_train = [float(m_drop(Xv[:1])) for _ in range(3)]
m_drop.eval()
with torch.no_grad():
    three_eval = [float(m_drop(Xv[:1])) for _ in range(3)]
print(f"3 times in train() mode: {[round(v, 4) for v in three_train]}  <-- ALL DIFFERENT")
print(f"3 times in eval()  mode: {[round(v, 4) for v in three_eval]}  <-- the same")

show(pd.DataFrame([
    {"Concept": "Backpropagation", "In one sentence": "The chain rule: not magic"},
    {"Concept": "Gradient checking", "In one sentence": "The analytic and numeric gradients must match"},
    {"Concept": "The vanishing gradient", "In one sentence": "The sigmoid derivative's max is 0.25: 9e-13 after 20 layers"},
    {"Concept": "Weight initialization", "In one sentence": "Never zero (symmetry); He for ReLU"},
    {"Concept": "Adam", "In one sentence": "Momentum + RMSProp; the default choice, lr=0.001"},
    {"Concept": "LR schedule", "In one sentence": "Big steps at the start, small ones at the end"},
    {"Concept": "BatchNorm", "In one sentence": "Faster training, a larger lr"},
    {"Concept": "Dropout", "In one sentence": "Against overfitting; it turns off in eval()"},
]))
