RNN, LSTM va vaqt qatorlari

import os
os.environ["CUDA_VISIBLE_DEVICES"] = "-1"
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import torch
import torch.nn as nn
from torch.utils.data import TensorDataset, DataLoader
from sklearn.linear_model import LinearRegression
from sklearn.neighbors import KNeighborsRegressor
from sklearn.ensemble import RandomForestRegressor
from sklearn.metrics import mean_absolute_error
from sklearn.model_selection import train_test_split

torch.set_num_threads(4)

r = np.random.default_rng(7)
OYLAR = 400
oy = np.arange(OYLAR)
qator = (420 + 0.9 * oy + 38 * np.sin(2 * np.pi * oy / 12) + r.normal(0, 14, OYLAR)).round(2)
seriya = pd.Series(qator, index=pd.date_range("1993-01-01", periods=OYLAR, freq="MS"))

print(f"Qator uzunligi : {OYLAR} oy")
print(f"Diapazon       : {qator.min():.1f} .. {qator.max():.1f}")
print(f"Birinchi yil   : {qator[:12].mean():.1f}")
print(f"Oxirgi yil     : {qator[-12:].mean():.1f}")
print()
print("Ichida uch narsa bor: TREND (o'sish), SEZONLIK (12 oylik to'lqin), SHOVQIN.")

rasm, (a1, a2) = plt.subplots(2, 1, figsize=(12, 6.5))
a1.plot(seriya.index, seriya.values, lw=1.1)
a1.set_title("To'liq qator: trend + sezonlik")
a1.set_ylabel("narx")
a2.plot(seriya.index[-48:], seriya.values[-48:], marker="o", ms=3.5, lw=1.2)
a2.set_title("Oxirgi 48 oy — sezonlik yaqindan ko'rinadi")
a2.set_ylabel("narx")
plt.tight_layout()

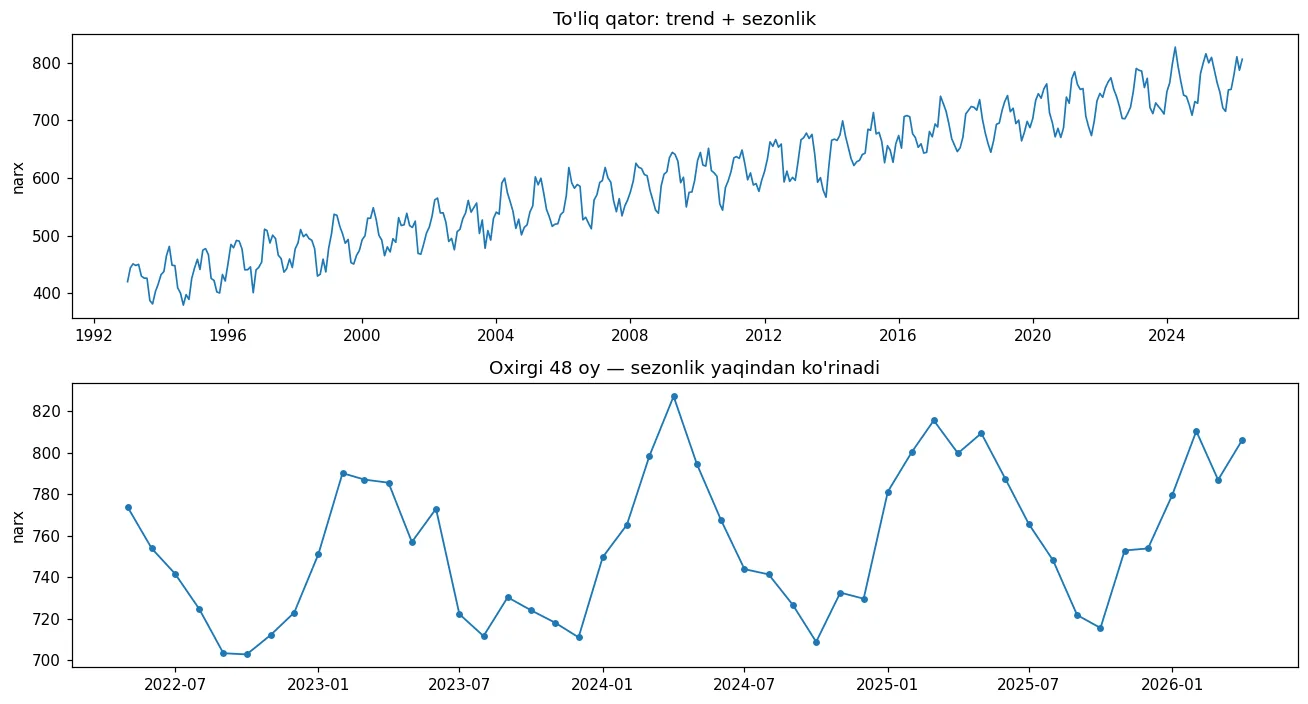

fig("qator.png", caption="Vaqt qatori: o'sish tendentsiyasi ustiga 12 oylik mavsumiy to'lqin qo'yilgan.")

L = 12
X = np.stack([qator[i:i + L] for i in range(OYLAR - L)])
y = qator[L:]

print(f"Oyna uzunligi L = {L}")
print(f"X shakli: {X.shape}   y shakli: {y.shape}")
print()
print("Muhim kuzatish — qo'shni oynalar bir-biriga juda o'xshaydi:")
print(f"  oyna 0: {X[0][:5]} ...")
print(f"  oyna 1: {X[1][:5]} ...")
print(f"  umumiy qiymatlar soni: {len(set(X[0]) & set(X[1]))} / {L}")

kesish = int(len(X) * 0.8)
Xtr, Xte, ytr, yte = X[:kesish], X[kesish:], y[:kesish], y[kesish:]
Xa, Xb, ya, yb = train_test_split(X, y, test_size=0.2, random_state=42)

print(f"Xronologik: train {len(Xtr)} oy -> test {len(Xte)} oy (keyingi davr)")
print(f"Tasodifiy : train {len(Xa)} oy -> test {len(Xb)} oy (vaqt bo'ylab aralash)")
print()
print(f"Train target diapazoni (xronologik): {ytr.min():.1f} .. {ytr.max():.1f}")
print(f"Test  target diapazoni (xronologik): {yte.min():.1f} .. {yte.max():.1f}")
print()
print(f"Test ning {float((yte > ytr.max()).mean()):.1%} qismi train dagi ENG KATTA qiymatdan yuqori.")
print("Ya'ni model EKSTRAPOLYATSIYA qilishi kerak — ko'rmagan diapazonga chiqishi kerak.")

modellar = [
    ("linear regression", lambda: LinearRegression()),
    ("KNN (k=3)", lambda: KNeighborsRegressor(3)),
    ("random forest", lambda: RandomForestRegressor(200, random_state=0)),
]
jadval = []
for nom, yasa in modellar:
    xron = mean_absolute_error(yte, yasa().fit(Xtr, ytr).predict(Xte))
    tasod = mean_absolute_error(yb, yasa().fit(Xa, ya).predict(Xb))
    jadval.append({"model": nom, "xronologik MAE": round(xron, 2),
                   "tasodifiy MAE": round(tasod, 2), "farq": round(tasod - xron, 2)})
show(pd.DataFrame(jadval))

m_knn = KNeighborsRegressor(3).fit(Xtr, ytr)
m_lin = LinearRegression().fit(Xtr, ytr)

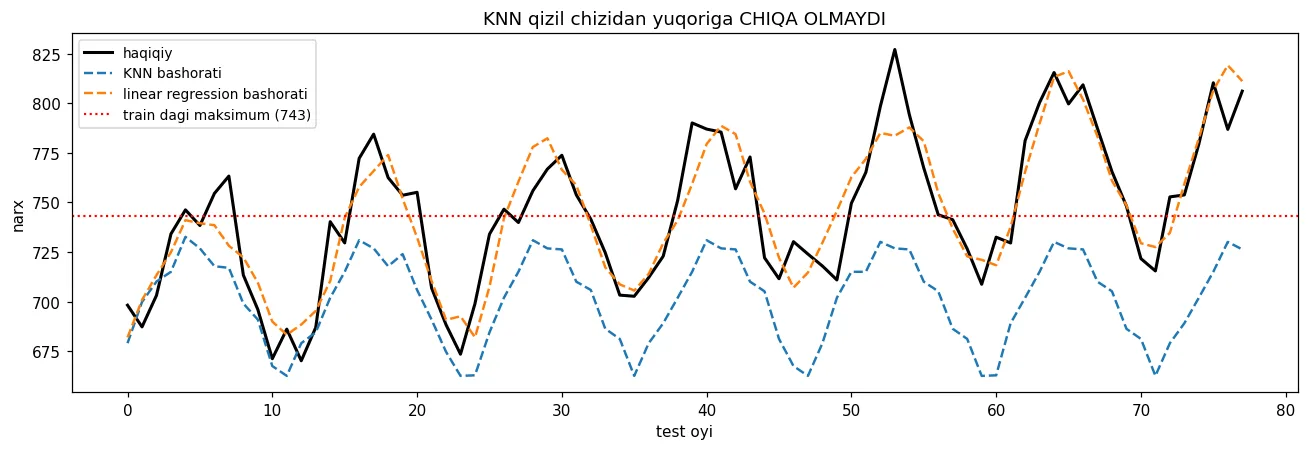

rasm, ax = plt.subplots(figsize=(12, 4.2))
ind = np.arange(len(yte))
ax.plot(ind, yte, "k-", lw=2, label="haqiqiy")
ax.plot(ind, m_knn.predict(Xte), "--", lw=1.6, label="KNN bashorati")
ax.plot(ind, m_lin.predict(Xte), "--", lw=1.6, label="linear regression bashorati")
ax.axhline(ytr.max(), color="red", ls=":", lw=1.4, label=f"train dagi maksimum ({ytr.max():.0f})")
ax.set_title("KNN qizil chizidan yuqoriga CHIQA OLMAYDI")
ax.set_xlabel("test oyi"); ax.set_ylabel("narx"); ax.legend(fontsize=9)
fig("ekstrapolyatsiya.png", caption="KNN bashorati train dagi maksimumga urilib qoladi. Linear regression trendni davom ettiradi.")

bazalar = {
    "naive (oxirgi qiymat)": Xte[:, -1],
    "sezonli naive (12 oy oldin)": Xte[:, 0],
}
natija = [{"usul": k, "MAE": round(mean_absolute_error(yte, v), 2)} for k, v in bazalar.items()]
natija.append({"usul": "linear regression (12 lag)",
               "MAE": round(mean_absolute_error(yte, m_lin.predict(Xte)), 2)})
show(pd.DataFrame(natija))
print("Har qanday murakkab model SHU raqamlardan past MAE bermasa — keraksiz.")

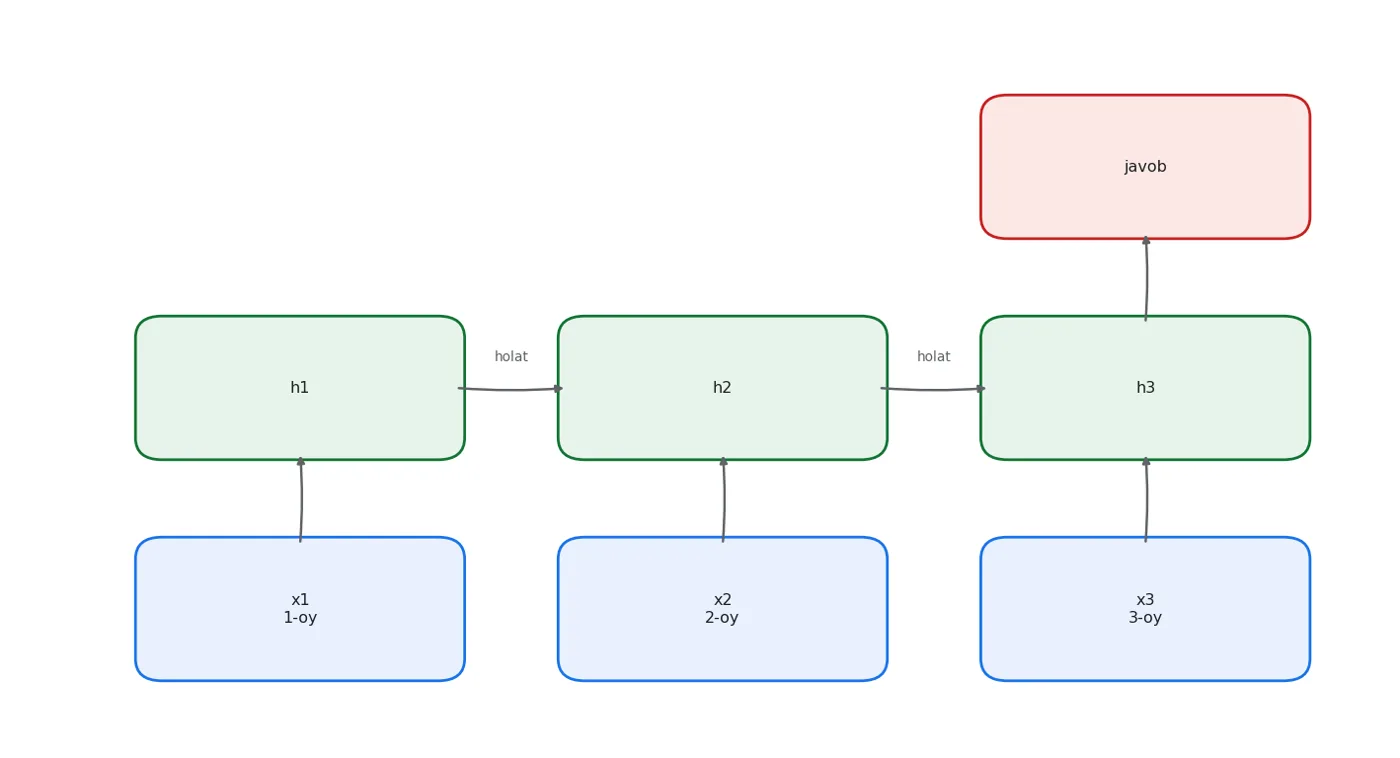

diagramma(
    {
        "x1\n1-oy": (0.2, 2.5, 1.4, 0.7, "manba"),
        "x2\n2-oy": (2.1, 2.5, 1.4, 0.7, "manba"),
        "x3\n3-oy": (4.0, 2.5, 1.4, 0.7, "manba"),
        "h1": (0.2, 1.3, 1.4, 0.7, "qayta"),
        "h2": (2.1, 1.3, 1.4, 0.7, "qayta"),
        "h3": (4.0, 1.3, 1.4, 0.7, "qayta"),
        "javob": (4.0, 0.1, 1.4, 0.7, "xizmat"),
    },
    [("x1\n1-oy", "h1"), ("x2\n2-oy", "h2"), ("x3\n3-oy", "h3"),
     ("h1", "h2", "holat"), ("h2", "h3", "holat"), ("h3", "javob")],
    nom="rnn_sxema.png",
    izoh="RNN qadamba-qadam yuradi. Yashirin holat o'ngga uzatiladi, "
         "oxirgi holat javob beradi. Birinchi oyning ta'siri shu zanjir orqali o'tishi kerak.",
)

h = 32
rnn = nn.RNN(1, h, batch_first=True)
lstm = nn.LSTM(1, h, batch_first=True)
print(f"nn.RNN(1, {h})  parametrlar: {sum(p.numel() for p in rnn.parameters())}")
print(f"nn.LSTM(1, {h}) parametrlar: {sum(p.numel() for p in lstm.parameters())}  (4 barobar — 4 ta darvoza)")
print()
print("LSTM ning 4 darvozasi: unutish, kirish, chiqish va yacheyka yangilanishi.")
print("Nazariy g'oya: darvozalar 'nimani eslab qolish'ni o'rganadi.")

def xotira_vazifasi(n, T, seed=0):
    rr = np.random.default_rng(seed)
    Xs = rr.normal(0, 1, (n, T, 1)).astype(np.float32)
    return torch.tensor(Xs), torch.tensor((Xs[:, 0, 0] > 0).astype(np.int64))

class Ketma(nn.Module):
    def __init__(self, turi, h=32):
        super().__init__()
        self.rnn = nn.RNN(1, h, batch_first=True) if turi == "rnn" else nn.LSTM(1, h, batch_first=True)
        self.fc = nn.Linear(h, 2)
    def forward(self, x):
        chiqish, _ = self.rnn(x)
        return self.fc(chiqish[:, -1])

def ketma_oqit(turi, T, seed, epoxalar=60, n=2000):
    torch.manual_seed(seed)
    Xtr_, ytr_ = xotira_vazifasi(n, T, 1)
    Xte_, yte_ = xotira_vazifasi(600, T, 2)
    m = Ketma(turi)
    opt = torch.optim.Adam(m.parameters(), lr=0.005)
    krit = nn.CrossEntropyLoss()
    dl = DataLoader(TensorDataset(Xtr_, ytr_), batch_size=64, shuffle=True,
                    generator=torch.Generator().manual_seed(seed))
    for _ in range(epoxalar):
        m.train()
        for xb, yb_ in dl:
            opt.zero_grad(); krit(m(xb), yb_).backward(); opt.step()
    m.eval()
    with torch.no_grad():
        return float((m(Xte_).argmax(1) == yte_).float().mean())

print("Tasodifiy javob = 0.50 aniqlik. Har konfiguratsiya 3 SEED bilan.")
qatorlar = []
for T in [5, 20, 60]:
    for turi in ["rnn", "lstm"]:
        aniq = [ketma_oqit(turi, T, s) for s in (0, 1, 2)]
        qatorlar.append({"uzunlik T": T, "model": turi,
                         "seedlar": str([round(a, 3) for a in aniq]),
                         "o'rtacha": round(float(np.mean(aniq)), 4),
                         "eng yomon": round(min(aniq), 4)})
show(pd.DataFrame(qatorlar))

print("Kirishning har qadami bo'yicha gradient kattaligi (T=60, o'qitishdan oldin):")
print()
for turi in ["rnn", "lstm"]:
    torch.manual_seed(0)
    Xg, yg = xotira_vazifasi(256, 60, 1)
    Xg.requires_grad_(True)
    m = Ketma(turi)
    nn.CrossEntropyLoss()(m(Xg), yg).backward()
    g = Xg.grad.abs().mean(dim=(0, 2))
    print(f"  {turi.upper():>5}: qadam 0 -> {g[0]:.3e} | qadam 30 -> {g[30]:.3e} | "
          f"qadam 59 -> {g[59]:.3e}")
    print(f"         qadam 59 / qadam 0 nisbati: {g[59] / g[0]:.2e}")

def lstm_bashorat(seed, epoxalar, differensiya=False):
    torch.manual_seed(seed)
    if differensiya:
        Xa, Xb = np.diff(Xtr, axis=1), np.diff(Xte, axis=1)
        ya, baza = ytr - Xtr[:, -1], Xte[:, -1]
    else:
        Xa, Xb, ya, baza = Xtr, Xte, ytr, 0.0
    mu_, sd_ = Xa.mean(), Xa.std()
    ymu, ysd = ya.mean(), ya.std()
    yadro = nn.LSTM(1, 32, batch_first=True)
    boshi = nn.Linear(32, 1)
    opt = torch.optim.Adam(nn.ModuleList([yadro, boshi]).parameters(), lr=0.01)
    xt = torch.tensor(((Xa - mu_) / sd_).astype(np.float32)).unsqueeze(-1)
    yt = torch.tensor(((ya - ymu) / ysd).astype(np.float32)).unsqueeze(-1)
    dl = DataLoader(TensorDataset(xt, yt), batch_size=32, shuffle=True,
                    generator=torch.Generator().manual_seed(seed))
    for _ in range(epoxalar):
        for xb, yb_ in dl:
            opt.zero_grad()
            o, _ = yadro(xb)
            nn.MSELoss()(boshi(o[:, -1]), yb_).backward()
            opt.step()
    with torch.no_grad():
        o, _ = yadro(torch.tensor(((Xb - mu_) / sd_).astype(np.float32)).unsqueeze(-1))
        return boshi(o[:, -1]).squeeze(-1).numpy() * ysd + ymu + baza

tajribalar = [
    ("LSTM, xom qator, 120 epoxa", dict(epoxalar=120)),
    ("LSTM, xom qator, 400 epoxa", dict(epoxalar=400)),
    ("LSTM, DIFFERENSIYALANGAN, 400 epoxa", dict(epoxalar=400, differensiya=True)),
]
oxirgi = [
    {"usul": "naive (oxirgi qiymat)", "MAE": round(mean_absolute_error(yte, Xte[:, -1]), 2),
     "seedlar": "-"},
    {"usul": "linear regression (12 lag)",
     "MAE": round(mean_absolute_error(yte, m_lin.predict(Xte)), 2), "seedlar": "-"},
]
for nom, kw in tajribalar:
    xs_ = [mean_absolute_error(yte, lstm_bashorat(s, **kw)) for s in (0, 1, 2)]
    oxirgi.append({"usul": nom, "MAE": round(float(np.mean(xs_)), 2),
                   "seedlar": str([round(v, 1) for v in xs_])})
show(pd.DataFrame(oxirgi))

from sklearn.model_selection import TimeSeriesSplit

tss = TimeSeriesSplit(n_splits=5)
print("TimeSeriesSplit — train oynasi o'sib boradi, test har doim keyin keladi:")
print()
print(f"{'burma':>6} {'train':>14} {'test':>14}")
print("-" * 38)
for i, (tr, te) in enumerate(tss.split(X), 1):
    print(f"{i:>6} {f'0..{tr[-1]}':>14} {f'{te[0]}..{te[-1]}':>14}")
print()
xs = [mean_absolute_error(y[te], LinearRegression().fit(X[tr], y[tr]).predict(X[te]))
      for tr, te in tss.split(X)]
print(f"MAE har burmada : {[round(v, 2) for v in xs]}")
print(f"O'rtacha        : {np.mean(xs):.2f}  (+/- {np.std(xs):.2f})")

show(pd.DataFrame([
    {"Tushuncha": "Lag oyna", "Bitta jumla": "Vaqt qatorini jadvalga aylantirish usuli"},
    {"Tushuncha": "Xronologik split", "Bitta jumla": "Majburiy — tasodifiy split natijani yaxshi ko'rsatadi"},
    {"Tushuncha": "Ekstrapolyatsiya", "Bitta jumla": "Daraxt va KNN train maksimumidan yuqoriga chiqa olmaydi"},
    {"Tushuncha": "Differensiyalash", "Bitta jumla": "Trendni ayirish — model tanlashdan OLDIN qilinadi"},
    {"Tushuncha": "TimeSeriesSplit", "Bitta jumla": "Vaqt qatori uchun KFold o'rnini bosadi"},
    {"Tushuncha": "Vaqt qatori bazasi", "Bitta jumla": "naive va sezonli naive — birinchi raqib"},
    {"Tushuncha": "RNN", "Bitta jumla": "Qadamba-qadam yuradi, yashirin holat saqlaydi"},
    {"Tushuncha": "LSTM darvozalari", "Bitta jumla": "4 barobar parametr; nazariyada uzoq xotira"},
    {"Tushuncha": "Seed tarqoqligi", "Bitta jumla": "O'lchandi: bitta seed yetarli emas, eng yomonini yozing"},
    {"Tushuncha": "Vanishing gradient", "Bitta jumla": "O'lchandi: birinchi qadamga signal deyarli yetmaydi"},
]))
