CNN: convolutional neural networks

import os
os.environ["CUDA_VISIBLE_DEVICES"] = "-1"
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import torch
import torch.nn as nn
from sklearn.datasets import load_digits

torch.set_num_threads(4)
digits = load_digits()
X_img = digits.images / 16.0              # 0..16 -> 0..1
y_img = digits.target

print(f"Image shape : {X_img.shape}   -> {X_img.shape[0]} images, {X_img.shape[1]}x{X_img.shape[2]} pixels")
print(f"Classes     : {sorted(set(y_img))}")
print(f"Per class   : {np.bincount(y_img)}")
print()
print("One image is just an 8x8 matrix:")
print(np.round(X_img[0], 2))

figure, axes = plt.subplots(2, 8, figsize=(14, 3.8))
for i, ax in enumerate(axes.ravel()):
    ax.imshow(X_img[i], cmap="gray_r")
    ax.set_title(str(y_img[i]), fontsize=11)
    ax.axis("off")

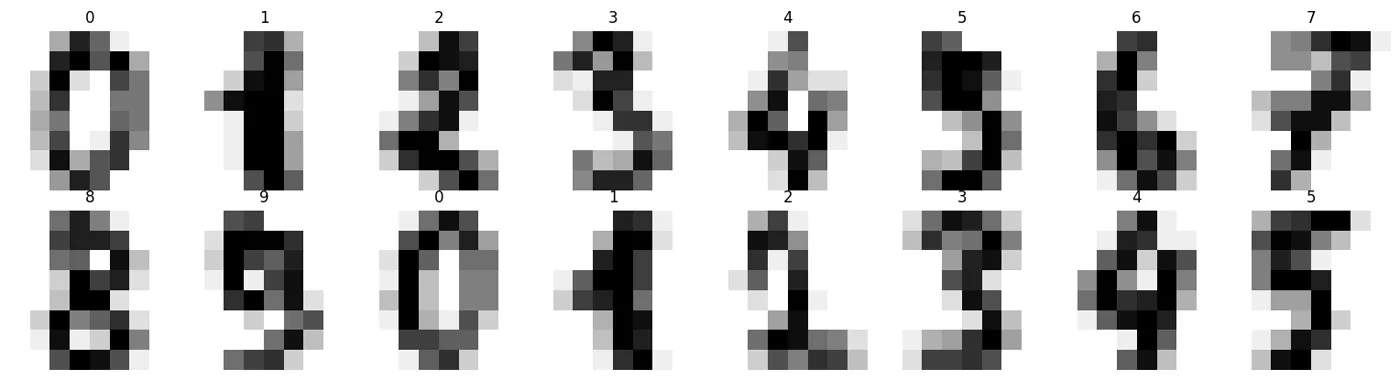

fig("raqamlar.png", caption="The load_digits dataset: 8x8 pixels, handwritten digits. It ships inside sklearn, no internet needed.")

print("BEFORE Flatten, neighbouring pixels are close to each other:")
print(f"  (3,3) and (3,4) are neighbours -> indices {3*8+3} and {3*8+4} in the vector  (side by side)")
print(f"  (3,3) and (4,3) are neighbours -> indices {3*8+3} and {4*8+3} in the vector  (8 apart!)")
print()
print("To an ordinary Dense layer, 64 elements are just 64 independent numbers.")
print("It does NOT KNOW that 'indices 27 and 35 are vertical neighbours'.")
print()
# proof: we SHUFFLE the pixels and the result doesn't change
r = np.random.default_rng(42)
order = r.permutation(64)
print("Proof: we shuffle the pixels of every image in the SAME order.")
print("If a Dense network doesn't use spatial structure, the result shouldn't change.")

from sklearn.model_selection import train_test_split
from torch.utils.data import TensorDataset, DataLoader

def build(kind):
    if kind == "dense":
        return nn.Sequential(nn.Flatten(), nn.Linear(64, 128), nn.ReLU(),
                             nn.Dropout(0.2), nn.Linear(128, 10))
    return nn.Sequential(
        nn.Conv2d(1, 16, 3, padding=1), nn.ReLU(), nn.MaxPool2d(2),    # 8x8 -> 4x4
        nn.Conv2d(16, 32, 3, padding=1), nn.ReLU(), nn.MaxPool2d(2),   # 4x4 -> 2x2
        nn.Flatten(), nn.Dropout(0.2), nn.Linear(32 * 2 * 2, 10),
    )

def train(Xtr, ytr, Xte, yte, kind, epochs=30):
    torch.manual_seed(42)
    m = build(kind)
    f = ((lambda a: torch.tensor(a, dtype=torch.float32).unsqueeze(1)) if kind == "cnn"
         else (lambda a: torch.tensor(a, dtype=torch.float32)))
    dl = DataLoader(TensorDataset(f(Xtr), torch.tensor(ytr)), batch_size=64, shuffle=True,
                    generator=torch.Generator().manual_seed(42))
    opt = torch.optim.Adam(m.parameters(), lr=0.003)
    criterion = nn.CrossEntropyLoss()
    for _ in range(epochs):
        m.train()
        for xb, yb in dl:
            opt.zero_grad(); criterion(m(xb), yb).backward(); opt.step()
    m.eval()
    with torch.no_grad():
        acc = float((m(f(Xte)).argmax(1) == torch.tensor(yte)).float().mean())
    return acc, sum(p.numel() for p in m.parameters())

# the version with shuffled pixels
X_shuffled = X_img.reshape(len(X_img), -1)[:, order].reshape(-1, 8, 8)
Xtr, Xte, ytr, yte = train_test_split(X_img, y_img, test_size=.3, random_state=42, stratify=y_img)
Xtr_s, Xte_s, _, _ = train_test_split(X_shuffled, y_img, test_size=.3, random_state=42, stratify=y_img)

a_normal, _ = train(Xtr, ytr, Xte, yte, "dense")
a_shuffled, _ = train(Xtr_s, ytr, Xte_s, yte, "dense")
print(f"Dense, normal images          : {a_normal:.4f}")
print(f"Dense, pixels shuffled        : {a_shuffled:.4f}")
print(f"Difference                    : {a_shuffled - a_normal:+.4f}")

def convolve(img_2d, kernel):
    """Convolution by hand, no padding."""
    kh, kw = kernel.shape
    h, w = img_2d.shape
    result = np.zeros((h - kh + 1, w - kw + 1))
    for i in range(result.shape[0]):
        for j in range(result.shape[1]):
            window = img_2d[i:i+kh, j:j+kw]
            result[i, j] = float((window * kernel).sum())     # the operation from Chapter 12!
    return result

# classic filters
kernels = {
    "vertical edge": np.array([[-1, 0, 1], [-1, 0, 1], [-1, 0, 1]], dtype=float),
    "horizontal edge": np.array([[-1, -1, -1], [0, 0, 0], [1, 1, 1]], dtype=float),
    "smoothing": np.ones((3, 3)) / 9,
}
sample = X_img[0]
figure, axes = plt.subplots(1, 4, figsize=(15, 3.6))
axes[0].imshow(sample, cmap="gray_r"); axes[0].set_title(f"original (digit {y_img[0]})"); axes[0].axis("off")
for ax, (name, f_) in zip(axes[1:], kernels.items()):
    ax.imshow(convolve(sample, f_), cmap="gray_r")
    ax.set_title(name, fontsize=10); ax.axis("off")

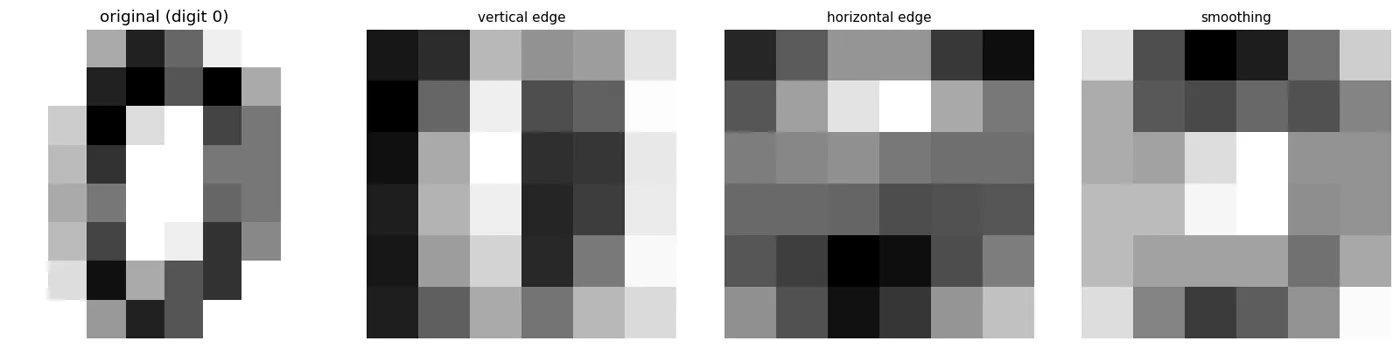

fig("filtrlar.png", caption="One image, three filters. Each filter sees something different: vertical edges, horizontal edges, smoothness.")

print("Inside a convolution: the dot product from Chapter 12:")
print(f"  result[0,0] = sum(window * kernel)")
print()
print(f"Original image shape   : {sample.shape}")
print(f"After a 3x3 filter     : {convolve(sample, kernels['smoothing']).shape}  (the edges are lost)")

print("Counting the Conv2d parameters:")
conv = nn.Conv2d(1, 16, 3, padding=1)
print(f"  nn.Conv2d(1, 16, 3): {sum(p.numel() for p in conv.parameters())} parameters")
print(f"    = 16 filters x (1 channel x 3 x 3) + 16 biases = {16*9} + 16")
print()
dense_equivalent = 64 * 64
print(f"For comparison: Dense(64, 64) = {dense_equivalent} parameters")
print()
print("That's the CNN's second advantage: WEIGHT SHARING.")
print("One filter is used across the whole image: no separate weight for every position.")

small = X_img[0]
mp = nn.MaxPool2d(2)
ap = nn.AvgPool2d(2)
t = torch.tensor(small, dtype=torch.float32).unsqueeze(0).unsqueeze(0)

figure, axes = plt.subplots(1, 3, figsize=(12, 3.4))
axes[0].imshow(small, cmap="gray_r"); axes[0].set_title(f"original 8x8"); axes[0].axis("off")
axes[1].imshow(mp(t)[0, 0].numpy(), cmap="gray_r"); axes[1].set_title("MaxPool2d(2) -> 4x4"); axes[1].axis("off")
axes[2].imshow(ap(t)[0, 0].numpy(), cmap="gray_r"); axes[2].set_title("AvgPool2d(2) -> 4x4"); axes[2].axis("off")

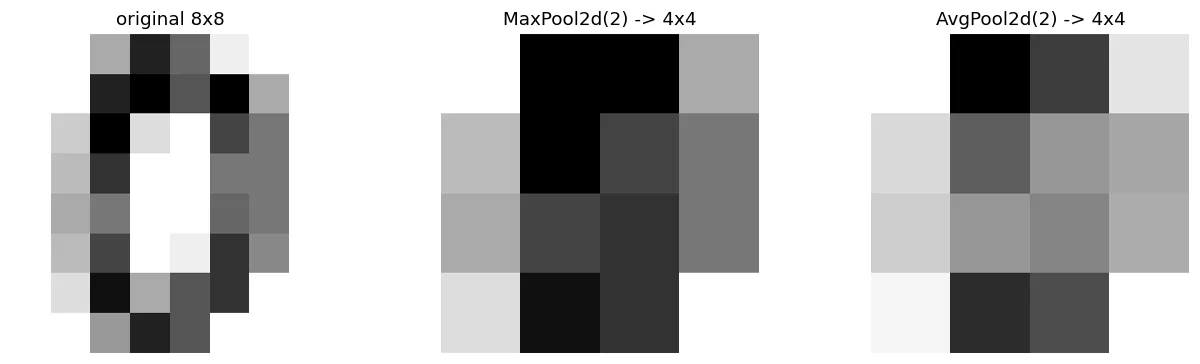

fig("pooling.png", caption="Pooling halves the size. MaxPool keeps the strongest signal, AvgPool the average.")

print(f"{'step':<28} {'shape'}")
print("-" * 44)
x = t
print(f"{'input':<28} {tuple(x.shape)}")
for name, layer in [("Conv2d(1,16,3,padding=1)", nn.Conv2d(1, 16, 3, padding=1)),
                    ("MaxPool2d(2)", nn.MaxPool2d(2)),
                    ("Conv2d(16,32,3,padding=1)", nn.Conv2d(16, 32, 3, padding=1)),
                    ("MaxPool2d(2)", nn.MaxPool2d(2)),
                    ("Flatten()", nn.Flatten())]:
    x = layer(x)
    print(f"{name:<28} {tuple(x.shape)}")

def shift(images, seed=0):
    """Shift every image randomly by -2..+2 pixels."""
    r_ = np.random.default_rng(seed)
    result = np.zeros_like(images)
    for i, im in enumerate(images):
        dx, dy = r_.integers(-2, 3, 2)
        result[i] = np.roll(np.roll(im, dx, axis=0), dy, axis=1)
    return result

X_shifted = shift(X_img)
figure, axes = plt.subplots(2, 8, figsize=(14, 3.8))
for i in range(8):
    axes[0, i].imshow(X_img[i], cmap="gray_r"); axes[0, i].axis("off")
    axes[1, i].imshow(X_shifted[i], cmap="gray_r"); axes[1, i].axis("off")
axes[0, 0].set_ylabel("original"); axes[1, 0].set_ylabel("shifted")

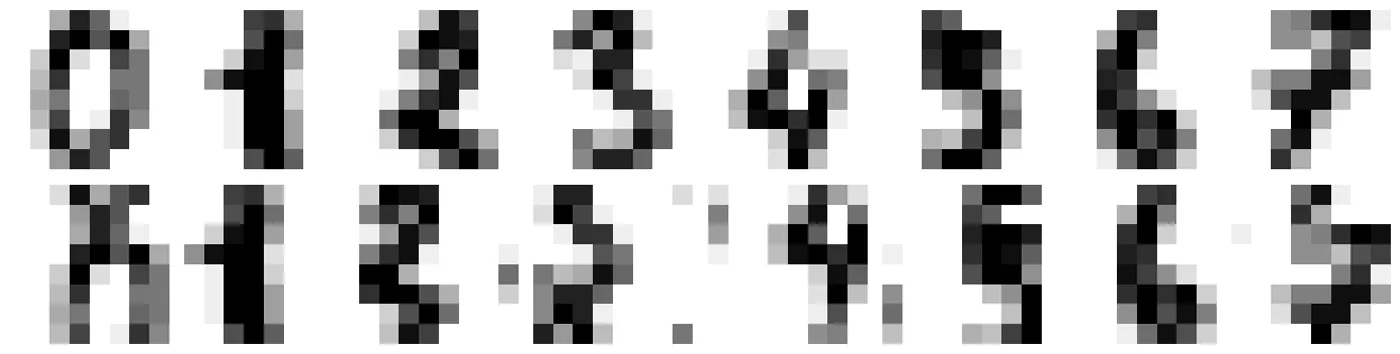

fig("siljish.png", caption="Top: the centred digits. Bottom: randomly shifted. A person reads both.")
print("In real life an object isn't always in the centre, which is why this test matters.")

results = []
for name, Xd in [("centred (original)", X_img), ("SHIFTED", X_shifted)]:
    Xa, Xb, ya, yb = train_test_split(Xd, y_img, test_size=.3, random_state=42, stratify=y_img)
    for kind in ["dense", "cnn"]:
        a, n = train(Xa, ya, Xb, yb, kind)
        results.append({"data": name, "model": kind, "accuracy": round(a, 4), "parameters": n})
show(pd.DataFrame(results))

tab = pd.DataFrame(results)
c_dense = tab[(tab["data"].str.startswith("centred")) & (tab.model == "dense")].accuracy.iloc[0]
c_cnn = tab[(tab["data"].str.startswith("centred")) & (tab.model == "cnn")].accuracy.iloc[0]
s_dense = tab[(tab["data"] == "SHIFTED") & (tab.model == "dense")].accuracy.iloc[0]
s_cnn = tab[(tab["data"] == "SHIFTED") & (tab.model == "cnn")].accuracy.iloc[0]
print(f"On centred images: dense {c_dense:.4f}  vs  CNN {c_cnn:.4f}   -> gap {c_cnn-c_dense:+.4f}")
print(f"On shifted images: dense {s_dense:.4f}  vs  CNN {s_cnn:.4f}   -> gap {s_cnn-s_dense:+.4f}")
print()
print(f"CNN parameters  : {tab[tab.model=='cnn'].parameters.iloc[0]}")
print(f"Dense parameters: {tab[tab.model=='dense'].parameters.iloc[0]}")

def augment(Xtr_, ytr_, copies=3, seed=1):
    """Make shifted copies of every image."""
    r_ = np.random.default_rng(seed)
    Xs, ys = [Xtr_], [ytr_]
    for k in range(copies):
        Xs.append(shift(Xtr_, seed=seed + k))
        ys.append(ytr_)
    return np.concatenate(Xs), np.concatenate(ys)

Xa, Xb, ya, yb = train_test_split(X_shifted, y_img, test_size=.3, random_state=42, stratify=y_img)
Xa_aug, ya_aug = augment(Xa, ya)
print(f"Train size: {len(Xa)} -> {len(Xa_aug)}  (after augmentation)")
print()
print(f"{'variant':<40} {'accuracy':>9}")
print("-" * 52)
for name, Xt_, yt_, kind in [
    ("dense, NO augmentation", Xa, ya, "dense"),
    ("dense, WITH augmentation", Xa_aug, ya_aug, "dense"),
    ("CNN, NO augmentation", Xa, ya, "cnn"),
    ("CNN, WITH augmentation", Xa_aug, ya_aug, "cnn"),
]:
    a, _ = train(Xt_, yt_, Xb, yb, kind)
    print(f"{name:<40} {a:>9.4f}")

show(pd.DataFrame([
    {"Block": "1. Conv + ReLU", "What it does": "Finds local patterns (edges, corners)"},
    {"Block": "2. Conv + ReLU", "What it does": "Builds shapes out of the patterns"},
    {"Block": "3. Pool", "What it does": "Reduces the size, gives tolerance to position"},
    {"Block": "(repeat 1-3)", "What it does": "Each repeat makes the concepts more abstract"},
    {"Block": "4. Flatten", "What it does": "Turns the matrix into a vector"},
    {"Block": "5. Dense + output", "What it does": "The final decision"},
]))

torch.manual_seed(42)
cnn = build("cnn")
print("Our CNN:")
x = torch.zeros(1, 1, 8, 8)
for i, layer in enumerate(cnn):
    x = layer(x)
    name = layer.__class__.__name__
    n_par = sum(p.numel() for p in layer.parameters())
    print(f"  {i}. {name:<12} -> {str(tuple(x.shape)):<18} parameters: {n_par}")
print(f"\nTotal parameters: {sum(p.numel() for p in cnn.parameters())}")

show(pd.DataFrame([
    {"Situation": "Fewer than 1000 samples", "Solution": "Take a pretrained model, train only the last layer",
     "Name": "Feature extraction"},
    {"Situation": "1000-10000 samples", "Solution": "A pretrained model + train the last blocks too",
     "Name": "Fine-tuning"},
    {"Situation": "100000+ samples", "Solution": "Training from scratch is possible",
     "Name": "Training from scratch"},
]))
print()
print("Why it works: the first layers find edges and textures,")
print("and those are needed just the same in a CAT photo and in an X-RAY.")
print()
print("In practice you take a pretrained model from torchvision.models or HuggingFace.")
print("Because this chapter runs offline, we didn't download one;")
print("you'll see it in full in the YOLO book (stage 11 of the curriculum).")

show(pd.DataFrame([
    {"Concept": "Image = matrix", "In one sentence": "8x8 pixels: an ordinary table of numbers"},
    {"Concept": "The problem with Dense", "In one sentence": "Flatten loses the spatial relationships"},
    {"Concept": "Convolution", "In one sentence": "A filter slides over the image: the dot product from Chapter 12"},
    {"Concept": "Weight sharing", "In one sentence": "One filter for the whole image: few parameters"},
    {"Concept": "Pooling", "In one sentence": "Reduces the size, gives tolerance to position"},
    {"Concept": "The CNN's advantage", "In one sentence": "Not images as such: TRANSLATION INVARIANCE"},
    {"Concept": "Centred images", "In one sentence": "Dense is enough too: shown by measurement"},
    {"Concept": "Augmentation", "In one sentence": "The cheapest boost; TRAIN only"},
]))
